S50 S70 Chip Reading Writing RFID Magnetic Card Encoder Data Personalization Machine YDE-1

Economic Card Data Personalization Machine S50, S70 Chip Reading Writing RFID Magnetic Card Encoder YDE-1​

1. Introduction of Economic Card Data Personalization Machine S50, S70 Chip Reading Writing RFID Magnetic Card Encoder YDE-1​

It is designed to realize the following card data processing functions:

1. RFID card electrical performance test (check chip circuit inside RFID card good or not, if not good, the bad cards will be rejected);
2. RFID card chip data reading, data writing or password change (1 RFID encoding head is applied, It can read UID from almost all the RFID card chips (HF/LF chip) in the existing market. It can writing data, change initial passwords or sect keys in such RFID chips including Mifare S50, S70, Ultralight, Ultralight-C, Mifare Plus, Ntag203, Ntag213, Ntag216, Icode-2, FM11RF005M, EM4100(ID), ATA5577, EM4305).
3. Encode Magnetic stripe with the source data file
4. Encode magnetic stripe with the RFID Chip data read by RFID encoding unit.

2.Basic configuration of Economic Card Data Personalization Machine S50, S70 Chip Reading Writing RFID Magnetic Card Encoder YDE-1​

Basic configuration

Card feeding magazine-RFID encoding unit (1-head model)-Magnetic Stripe encoding unit-card rejection box-Good card collection unit

1. Speed: 8000 cards/hour for magnetic encoding operation.

6000-7000 cards/hour for RFID chip reading operation.

2000- 4000 cards/hour for Chip data writing operation.

2. Magnetic Record Density: 210 BPI for track 1; 75 or 210 BPI for track 2; and 210 BPI for track3

3. Applicable Magnetic tripe: HiCo/LoCo, 300 oe-4000 oe, 3 tracks, 12.7mm wide

4. Applicable Card type: Standard CR80 card, 0.3mm-1mm thickness

5. Power supply: AC220V, 50/60Hz

6. Power :1kW

7. Net Weight:120kg

8. Machine size: L1400×W400×1300mm

9. Package size &weight: 1 plywood case, GW 165KG, L1550×W550×1380mm

10. Magnetic writing head service lifetime: 200,000 to 300,000 times

11. Magnetic reading head service lifetime: 400,000 to 500,000 times.

3.More details of Economic Card Data Personalization Machine S50, S70 Chip Reading Writing RFID Magnetic Card Encoder YDE-1​

* Small size fast speed perso machine available for different batches of card flexible production.
* Small size industrial level machine, machine dimension is 1.4*0.4*1.3 meter; with RFID encoding unit (1-head model) and Magnetic Stripe encoding unit inside machine chamber.
* The machine is for ISO card personalization, with many functions optional.

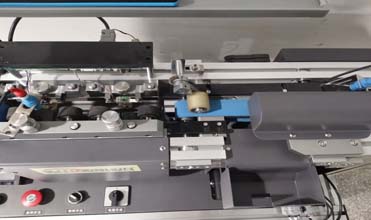

rfid magnetic card encoder 1kW

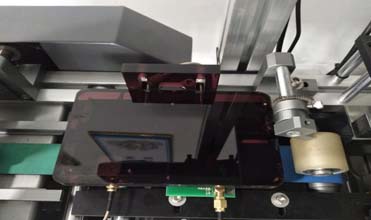

s70 chip reading writing encoder machine
